SK1201A-UHF RFID Reader-Long Range,12dBi Integrated Antenna
The SK1201A is a high-performance UHF RFID integrated reader with an embedded 12 dBi directional antenna. It is engineered for long-distance reading, stable performance, and rich I/O interfaces, making it ideal for vehicle access control, asset tracking, and industrial automation.
Key Features
• High-performance and easy installation
• Built-in 12 dBi circular polarized antenna ensures long-range reading
• Multiple communication interfaces: RS232, RS485, TCP/IP, GPIO
• IP-rated waterproof housing suitable for outdoor environments
• Reliable performance under strong sunlight and rain
SK1202A-UHF RFID Middle Range Integrated Reader
Overview
SK1202A is a high-performance UHF RFID integrated reader based on advanced reader platform technology. Designed for industrial and commercial applications, it supports multi-tag reading, fast response speed, and long-distance stable performance.
Key Features
• 📡 Built-in 9dBi linear polarization antenna
• ⚙️ Adjustable RF power from 0~30dBm
• 🔌 Rich interfaces: RS232, RS485, TCP/IP, GPIO
• 🧠 ARM Cortex-M3 CPU for efficient processing
• 💧 IP66-rated waterproof housing, ideal for outdoor use
• 🔧 Flexible working modes: Trigger/Timing/Real-time
• 🌐 Protocols: ISO18000-6C / EPC Gen2
• 🛠 Relay output and GPIO signal configuration supported
SK1203A-UHF Short Range Integrated RFID Reader
Key Features:
• Built with a new-generation RFID reader platform and circular polarized antenna for stable performance.
• Supports EPC Gen2 / ISO18000-6C protocol for multi-tag reading, writing, locking, and killing.
• Reading distance up to 3 meters with a rate of 200 tags per second.
• Offers multiple communication interfaces: RS232, RS485, TCP/IP.
• Provides reliable offline working mode and Weigand signal output.
• Rugged and compact design, ideal for industrial environments.
Specifications:
• Frequency: US (902-928MHz), China (920-925MHz)
• Protocol Support: ISO18000-6C, EPC Gen2
• RF Power: 0~30dBm adjustable
• Antenna: 3dBi circular polarization
• CPU: ARM CORTEX M3
• Memory: 16KB
• Software SDK: C and C++
• Power Supply: DC 9V~15V
• Operating Temp: -20℃ ~ +60℃
• Size: 154.6 × 106.5 × 26.5 mm
• Weight: 0.46 kg
• Color: Black

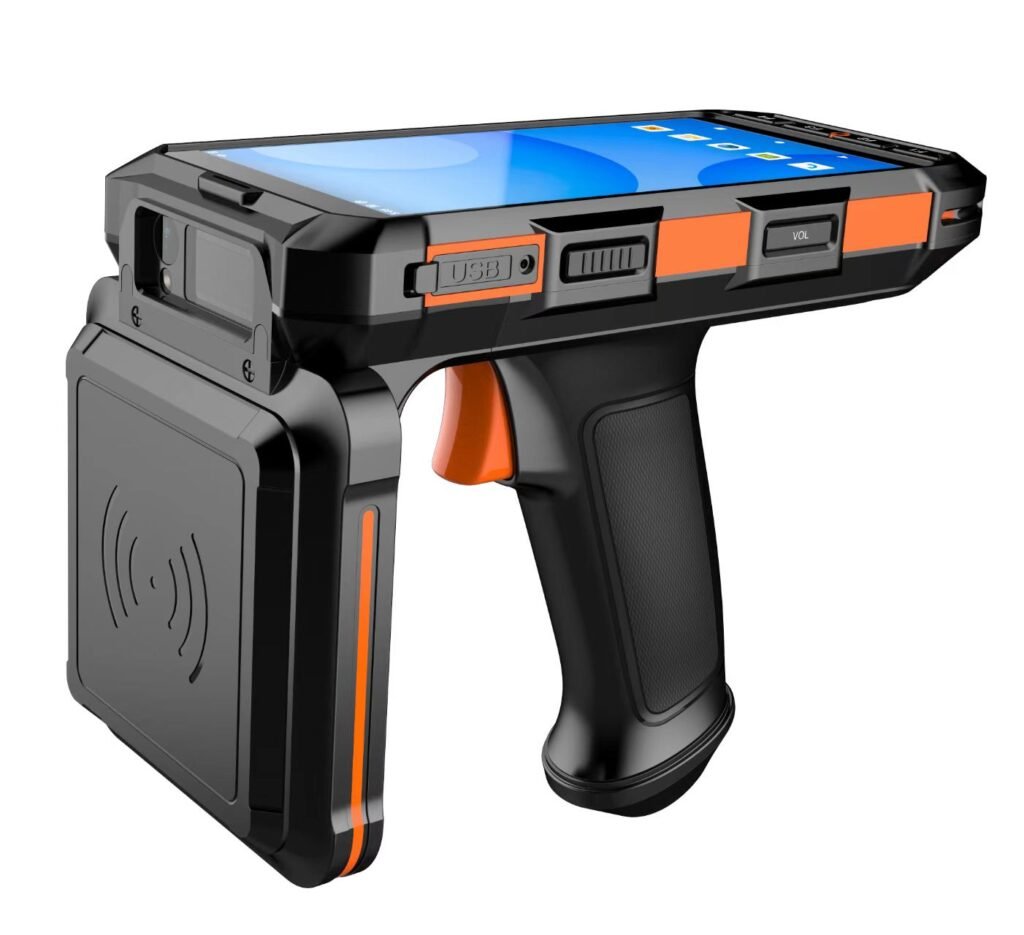

SK4201A
The SK4201A is a rugged, high-performance Android-based handheld terminal designed for industrial environments. It integrates advanced UHF RFID, barcode scanning, and multiple communication interfaces, making it ideal for logistics, warehousing, asset management, and identity verification.
Key Features:
• Powerful Performance
Equipped with Android 11.0, a quad-core processor, 2GB RAM, and 16GB ROM (expandable up to 128GB), ensuring stable and fast system operation.
• Advanced RFID Capability
Supports multiple RFID standards including HF, LF, NFC, PSAM, and UHF. Custom configurations available for single or dual-frequency combinations.
• High-Speed Barcode Scanning
Built-in scanner supports fast and accurate reading of both 1D and 2D barcodes, even under complex lighting conditions.
• Robust Industrial Design
IP65-rated for water and dust resistance. Withstands drops from 1.5 meters. Powered by an 8100mAh high-capacity battery for extended field use.
• Flexible Communication Options
Supports 4G networks, WiFi (2.4G/5G dual-band), Bluetooth, and GPS, ensuring stable and efficient data transmission anytime, anywhere.
• Wide Application Range
Ideal for retail, asset tracking, warehouse management, logistics, and identity authentication. Supports custom solutions and secondary development.
